www.genipack.com.twApplication:

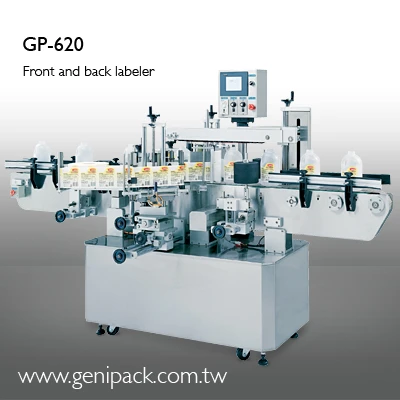

This machine is designed for twin side labeling on flat and oval shape bottles and containers.
It can be incorporated with a production line or operated individually.
Features:
1.Mitsubishi PLC combined with Proface human / machine interface LCD touch screen controller.
2.Japan made 5-phase stepping motor and driver.
3.Stainless steel frame construction is standard.
4.Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling.
5.50 Job Memory for easy recall.
6.Conveyor driven by variable speed AC motor.
7.Gearbox
8.Simple adjustments with coupled movement design of two labeling heads with easy access.
9.Powered wipe-down rollers.
Options:
1.Hot foil printer for date-coding.
2." Push & press " optional attachment is used to ensure smooth labeling without wrinkles or bubbles.
3.Tapered products can take advantage of the " labeling heads angle adjustment " up to 15 degree for conforming to the product shape.
4.Product separating screw for high speed labeling.
5.Transparent label sensor.
6.Servo motor for high speed labeling.
適用範圍:
本機設計適合扁瓶與橢圓形之雙面側貼(正/背標), 可連續生產或單機作業。
特點:
2. 日製五相微步進馬達及驅動器控制出標。
3. 本機主要結構由SUS#304不鏽鋼和鋁合金製程。
4. 輸送帶, 導正機構, 壓制臂及貼標頭部均採連動同部設計, 以確保輸送平穩貼標準確。
5. PLC有50組記憶區, 容易操作且能夠迅速更換產品。
6. 輸送帶由西門子交流變頻馬達驅動。
7. 減速箱。
8. 動力壓合機構, 確保貼標品質。
9. AC馬達皆為變頻驅動控制。
選購:
1. 本機可選購熱燙印字機。
2. 同步進退拍合機構可避免氣泡與皺折產生。
3. 角度調整器可隨瓶身而調整貼標頭部的角度。
4. 分瓶螺桿適用高速貼標。
5. LRD-6110 透明標籤電眼。
6. 使用高速貼標時, 可將貼標頭部馬達換為伺服馬達。
